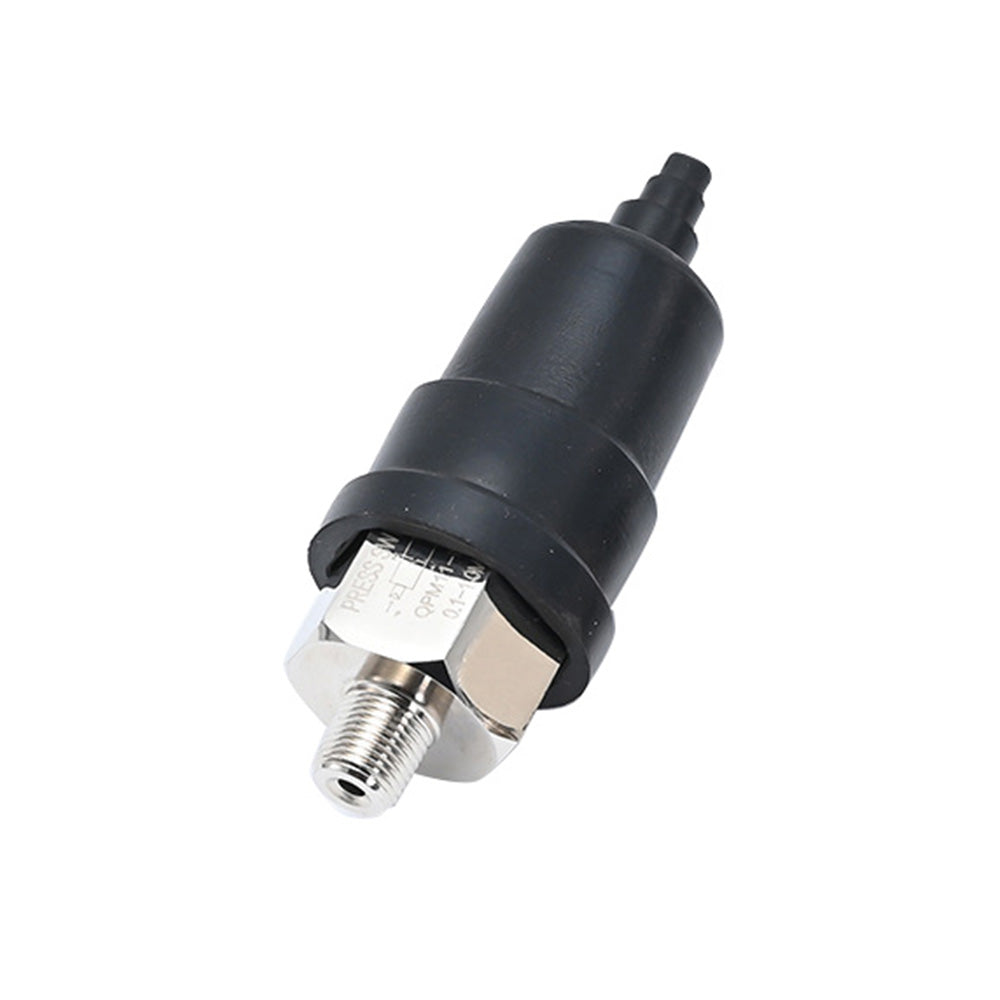

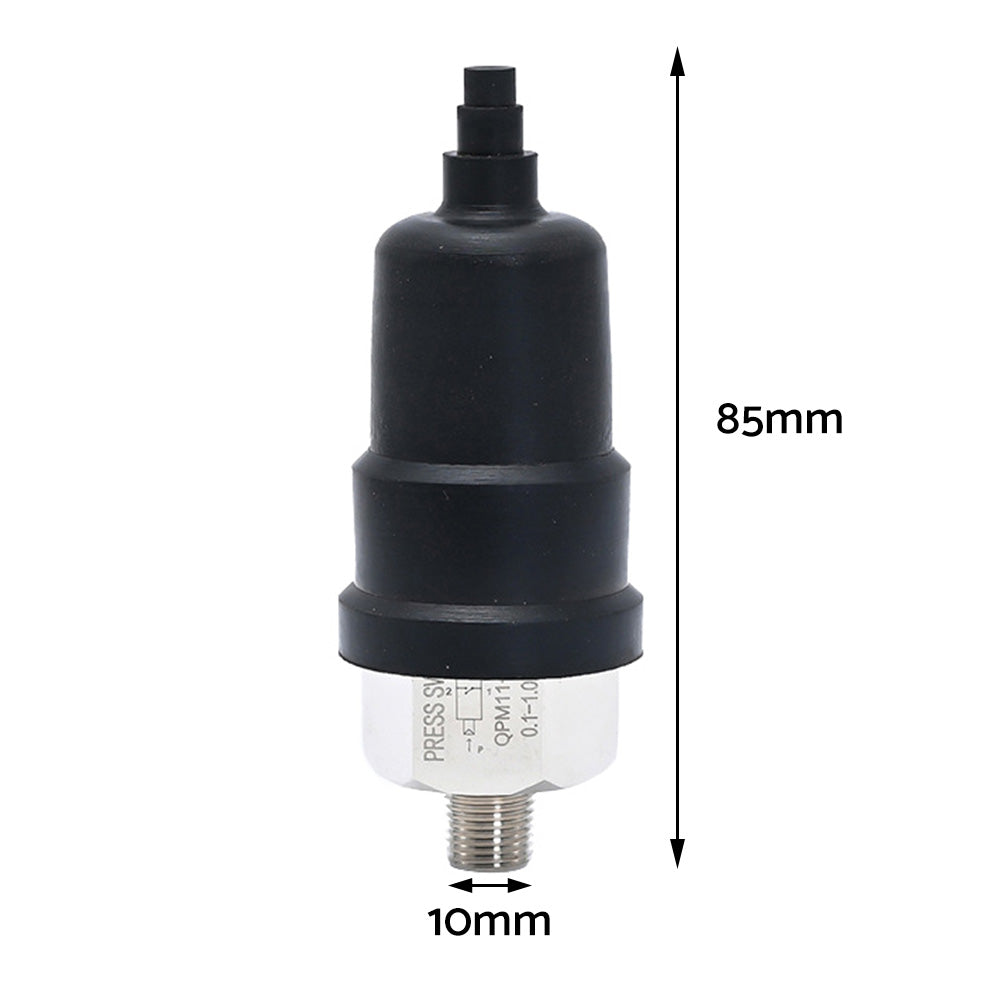

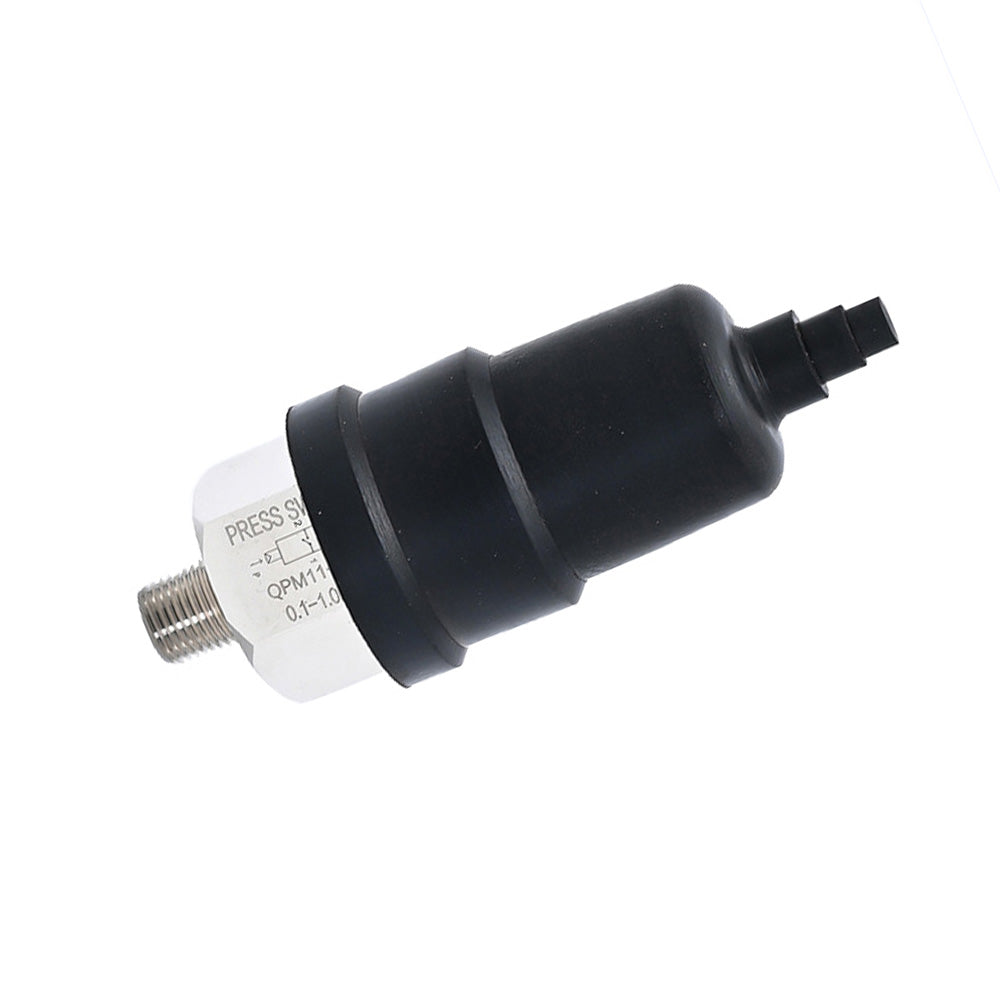

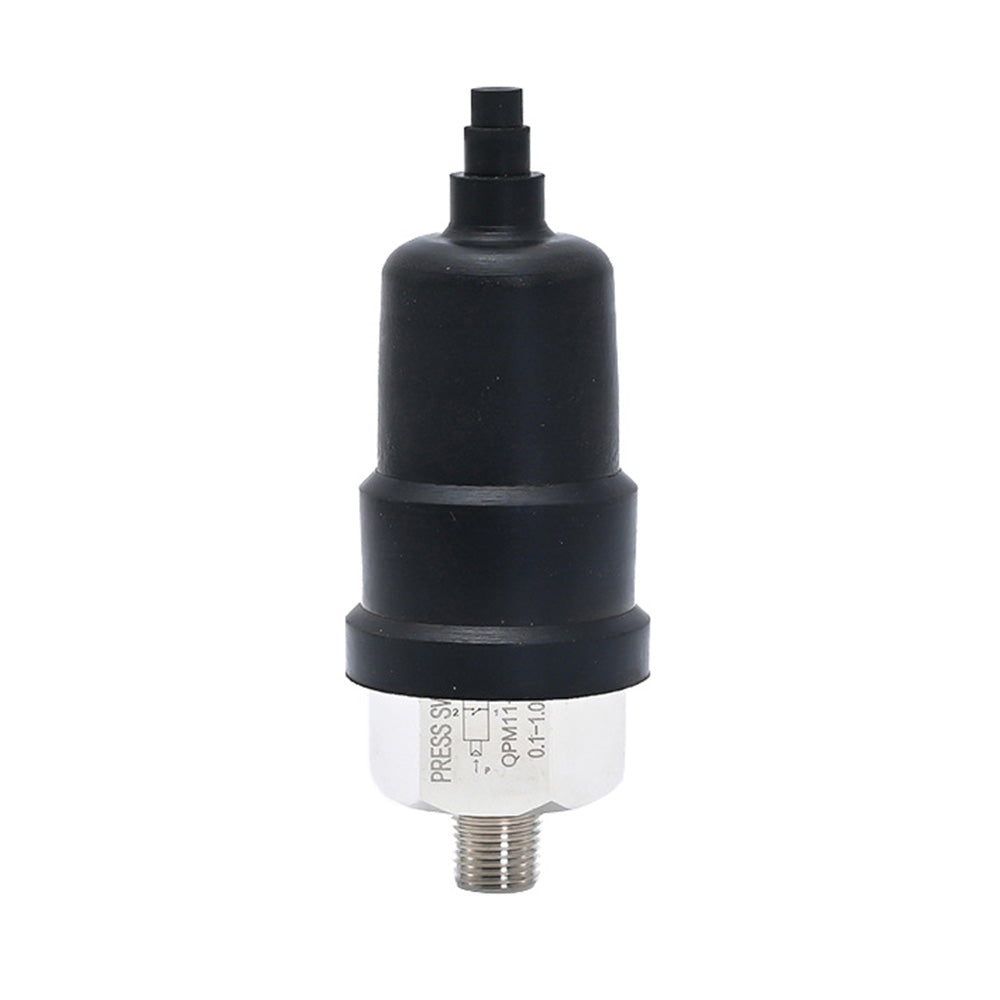

Adjustable Air Pressure Switch 12V 15-140 PSI Suitable For Compressor Air Locker Diff Lock
Available
Price:
$49.99
or 4 interest-free payments of $12.49 with Afterpay
Product details
Product details
Features:
This is an adjustable pressure switch with a normally closed (NC) configuration.
It can be adjusted using a hex key to set the pressure range from 15 psi to 140 psi.
A relay or solenoid is required to handle the load and protect the switch contacts.
The switch operates in an "Often shut down" mode by default, where the contacts are closed.
To set a specific pressure value, the contacts are disconnected, and power is supplied to the line.
Specifications:
Type: Air Pressure Switch
Working Form: Pressure Adjustable
Installation Connection: External Thread
Pressure Range: 0.1-1.0 MPA
Work Temperature Range: -5-60°
Connection: 1/8"
Rated Voltage: ≤220/120V DC24/12V
Current: 0.5A
Maximum Power: 24VA, 100VA
Insulation Voltage: 500V, 1500V
Maximum Working Current: 500mA
Max Pulse Count: 200T/min
Service Life: 1 million cycles
Protection Class: IP54
Package Include:

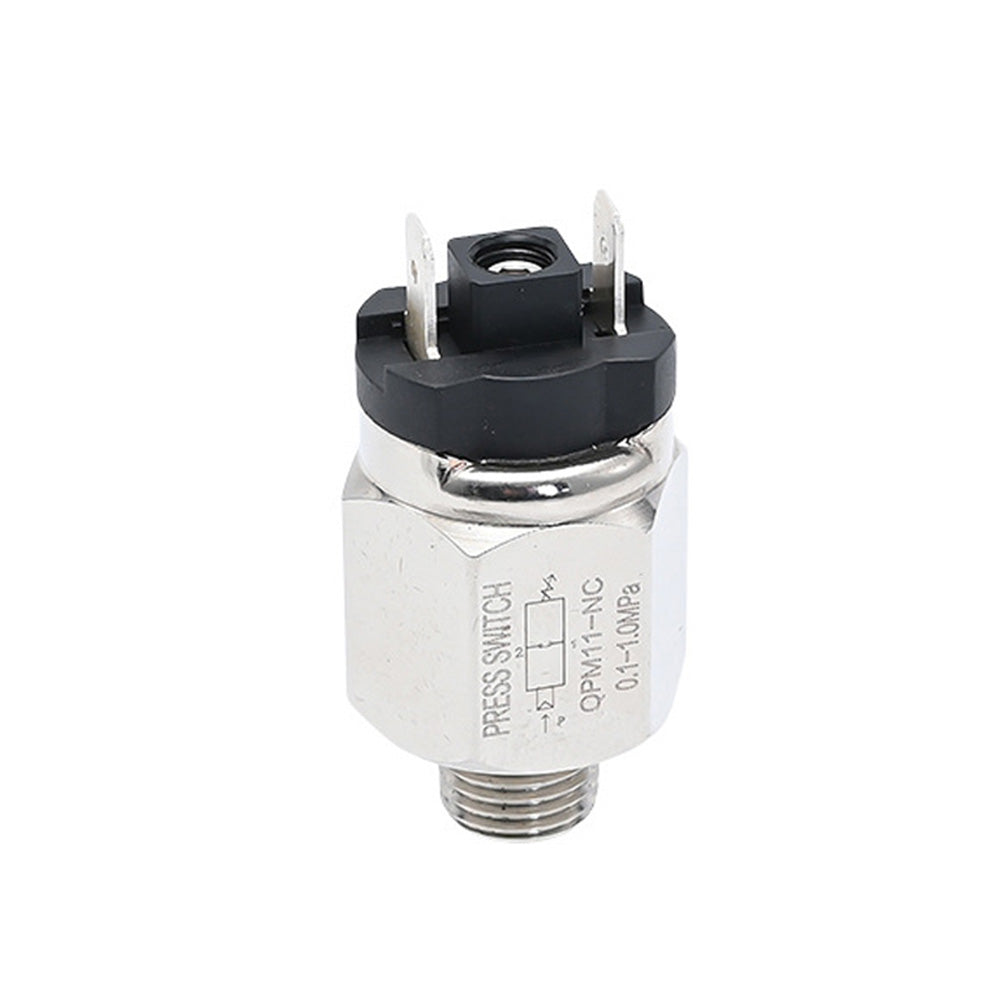

1 x Diaphragm Type Pressure Switch (brass fittings & inner hexagon spanner NOT included)
Note:
For proper functioning of the switch, an air receiver (small tank of 500ml or larger) is required, and reliance on line pressure alone should be avoided.
To adjust the pressure, please use a hex key to turn the two terminals located in the middle of the Hex.
