PAIR 90KG Loading Capacity Locking Drawer Slide Runner Trailer 800mm or 1600mm

Size & Capacity:

24 inch (600mm closed - 1200mm extended), maximum loading capacity 110KG

32 inch (800mm closed - 1600mm extended), maximum loading capacity 90KG

40 inch (1000mm closed - 2000mm extended), maximum loading capacity 70KG

48 inch (1200mm closed - 2400mm extended), maximum loading capacity 50KG

Note:

If you need 24/40/48 inch, please feel free to contact Team Frazy through our contact form.

Description

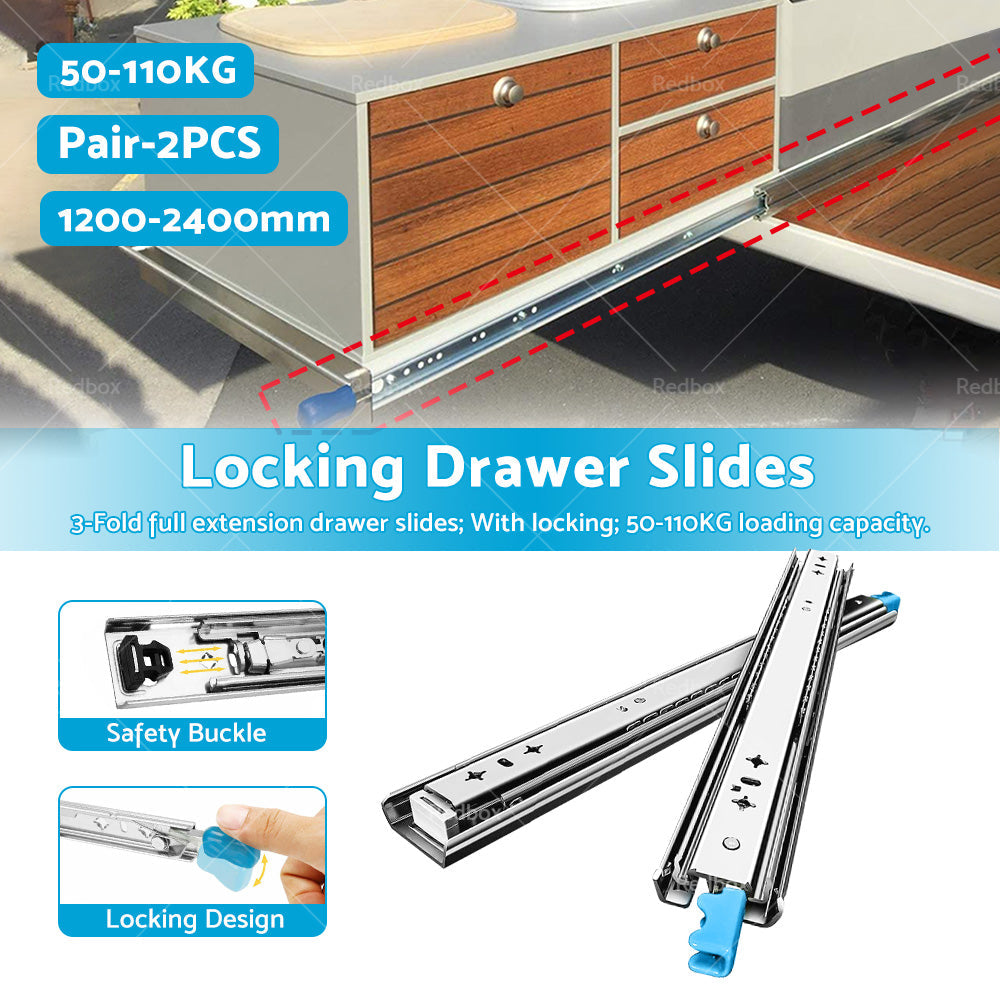

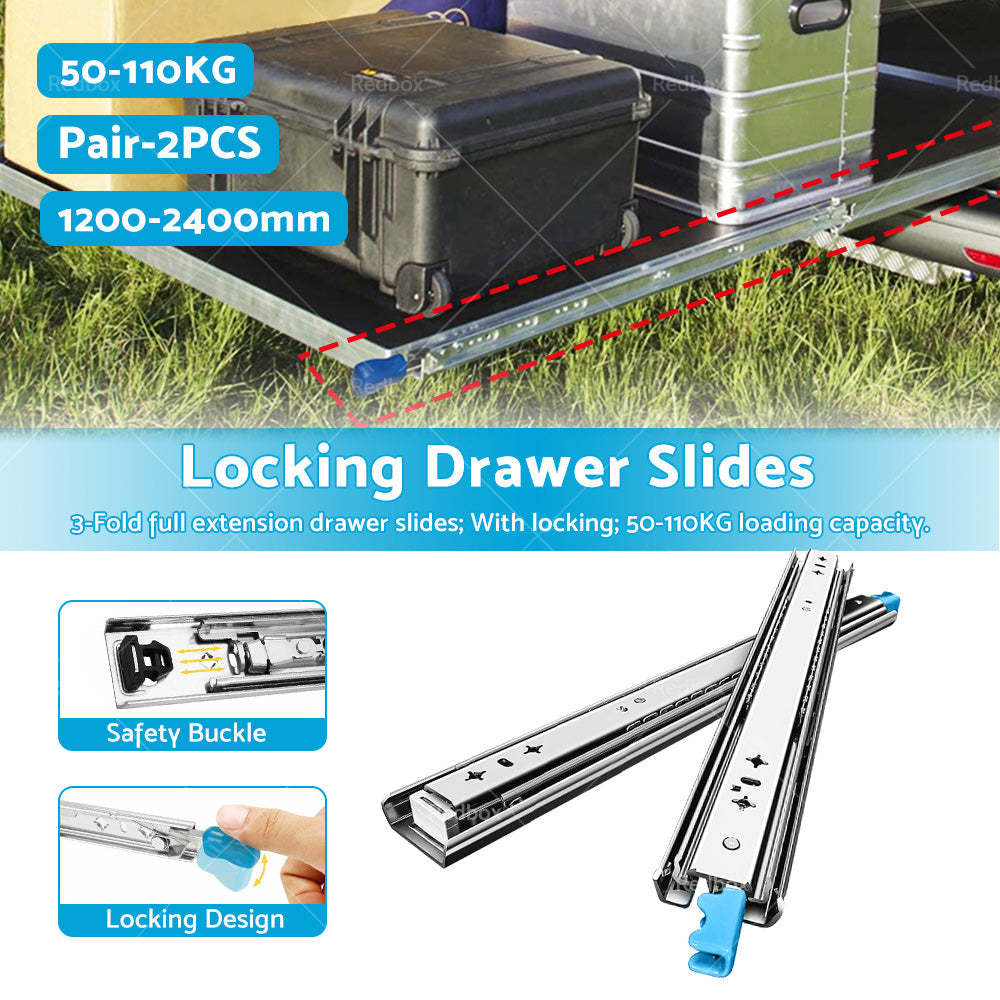

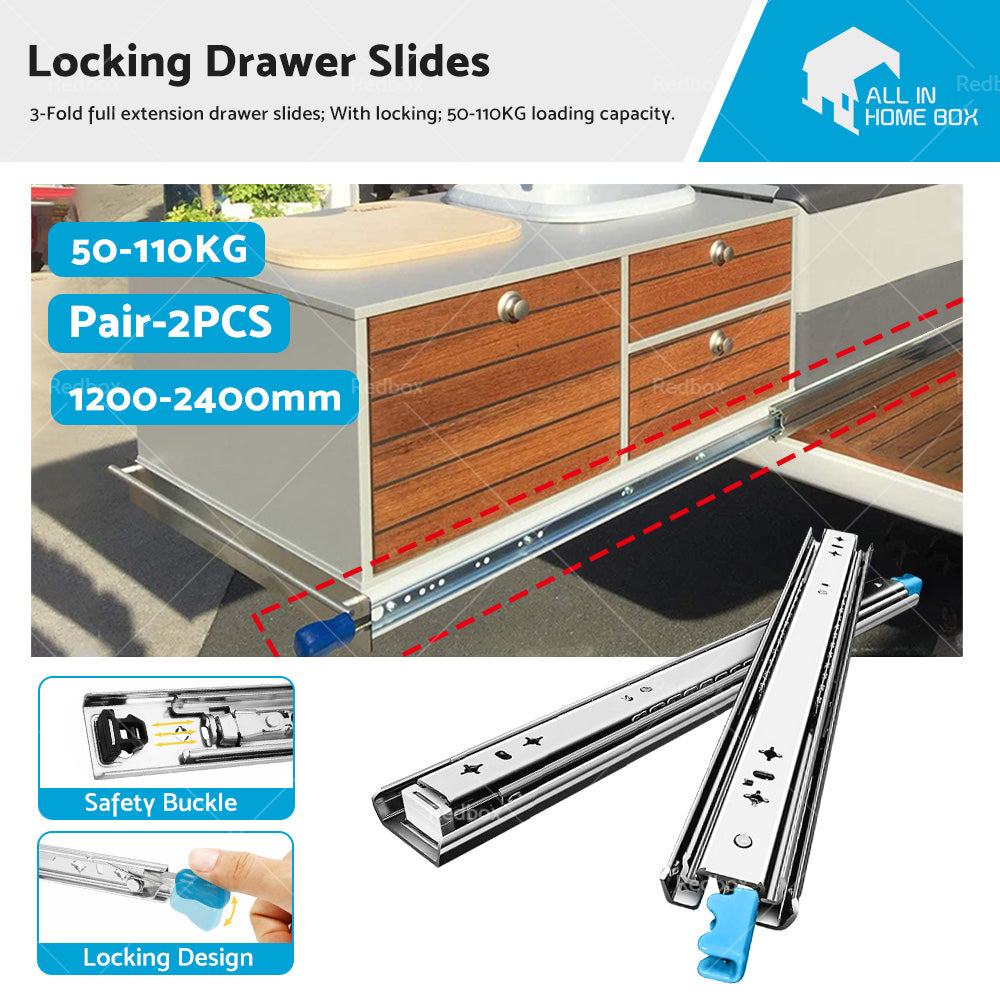

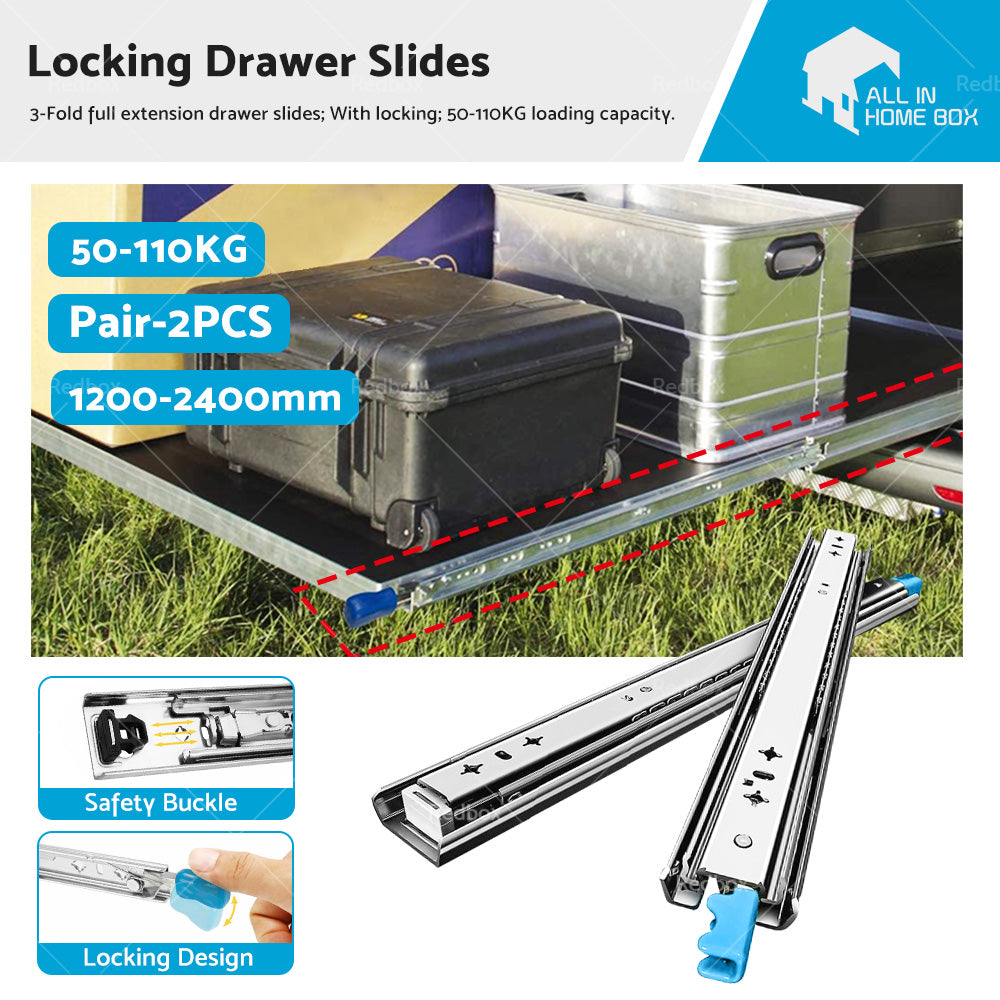

1) Full extension drawer slides:

3-Fold full extension drawer slides opening allows for the entire drawer to be accessed. Attention: the mounting brackets and screws are not included

2) Featuring lock design:

When your equipment is running at high speed, the exquisite lock design allows you to easily achieve the locked state ,Better to ensure safety , your equipment will not be affected in harsh environments.

3) Easy to disassemble and install:

There is a disassembly device on the back, which can quickly disassemble the slide rail with a light touch, which is convenient and saves time.

4) Professional application:

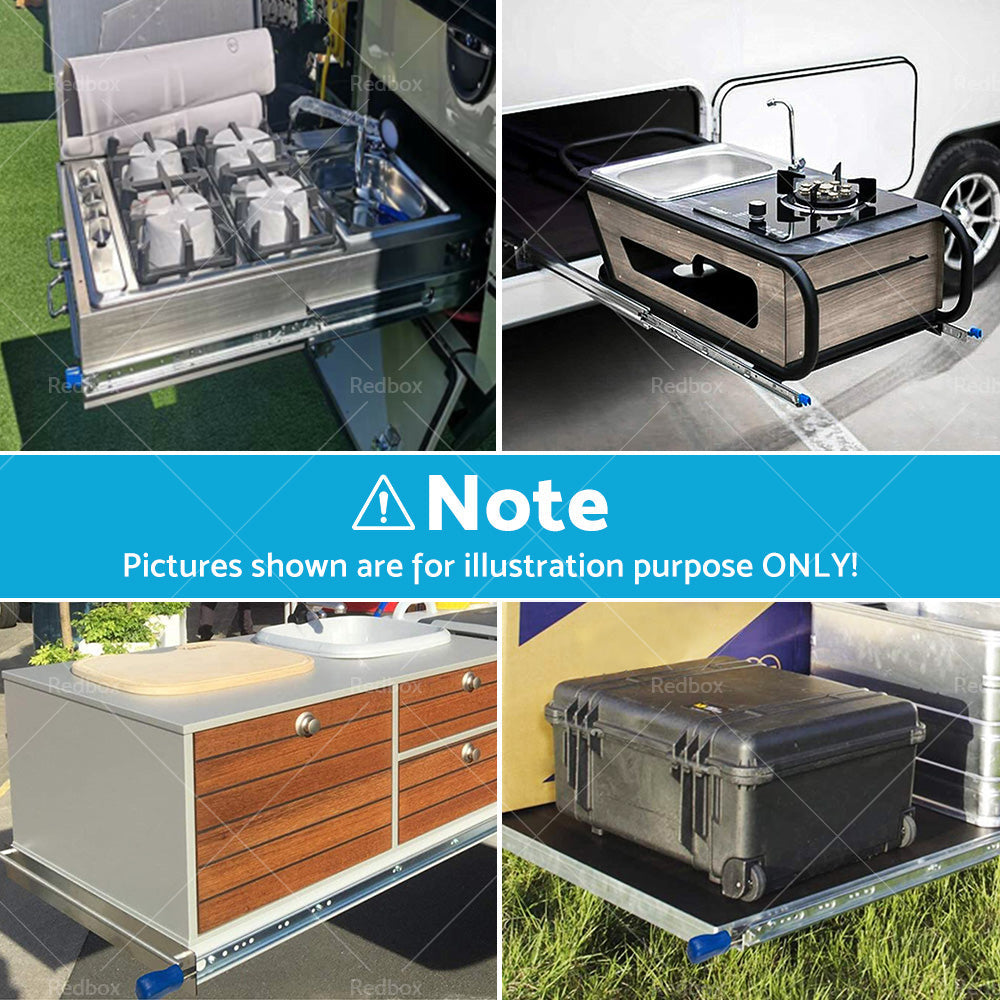

Goods shelf, Cabinets, Industry-used drawer, RV, Truck, Vending machine, heavy drawer. etc.

Features:

Heavy Duty - Up to 110KG maxium loading capacity.

Featuring Lock Design - Prevent from sliding. Easy control and secure fixation.

Full Extension - 3-Fold Full Extension, opening allows for the entire drawer to be accessed.

Professional application - Goods shelf, Cabinets, Industry-used drawer, RV, Truck, Vending machine, etc.

Locking leaver adds 25mm to overall closed length

Zinc Plated - Full Extension

Specification:

Brand: ALL IN HOME BOX

Type: Locking Drawer Slides

Carrying capacity：90KG

Lock handle length: about 3-4 cm

Width: 53mm

Thickness: 19 mm

Material thickness: 2 mm

Material: Stainless steel

Package include:

2x Locking Drawer Slide

Please Note:

50-110kg refers to what the drawer slides can support at 500mm square.

Any deviation from this will result in a reduction in the drawer slides carrying capacity.

Please consult our sales team if you are unsure about what drawer slides you require.

Furthermore, the sizes available chart reflects the maximum carrying capacity of the drawers slides.

As many of the slides listed are longer than 500mm they are NOT suitable for 50-110KG's.

This 50-110 weight rating simply refers to the extrusion that these runners belong too.
